Automated Storage & Retrieval Systems (ASRS)
Automated Storage and Retrieval Systems (ASRS) optimize warehouse efficiency by automating the storage and retrieval of goods, reducing manual labour and errors.
.png)
.png)
Stacker Cranes
-
Pallet (unit load crane) or Case (miniload crane)
-
Can carry a two-way shuttle
-
Speed = up to 180 m/min
-
For narrow aisles or high-bay racking
-
Single or double deep
-
Height = up to 32m
-
Load = Up to 2,000kg
-
Position accuracy = +/- 5mm
-
Anti-sway features
Mini Load
Unit Load
Pallet Shuttles
4-WAY
-
Ultra thin with thickness 125mm
-
Frozen environment -25°C
-
Explosion-proof model
-
Load capacity = 1,500 kg
-
Speed (no load) = up to 120 m/min.
-
Speed (full load) = up to 80 m/min.
-
Traveling and Positioning Accuracy = +/- 2mm
-
Automatic charging
2-WAY
-
Shuttle can be transferred by forklift, stacker crane, or parent shuttle
-
FIFO and LIFO
PARENT-CHILD
-
Max height = 16m
-
Multi deep
-
Obstacle detection
-
Multi-floor automatic switching (hoist)
-
Frozen environment -25°C
Tote Shuttles
4-WAY OR 2-WAY
-
For bins and cartons of different sizes
-
Single or double deep
-
Max load = 50 kg.
-
Max speed (X axis) = 5 m/ sec
-
Max speed (Y axis) = 2 m/ sec
-
Position accuracy = +/- 2mm
-
Auto charging
-
Operating Temperature = -25 to 50°C
Rail Guided Vehicles
FOR PICK UP, DELIVERY AND PLACING PALLETS
Available in Straight or Loop Run
Straight - Single Station
-
Load capacity = 1,500 kg
-
Travel speed = 180 m/min
-
Conveying speed = 12-18 m/min
-
Operating Temperature = -25 to 40°C
-
Noise < 75 dB(A)
-
Automatic obstacle avoidance
Straight - Dual Station
-
Load capacity = 3,000 kg
-
Travel speed = 120 m/min
-
Conveying speed = 12-18 m/min
Lifters
Pallet Shuttle Lifter
Tote Shuttle Lifter
High Speed Tote Lifter
Landing Lifter
Vertical Modules

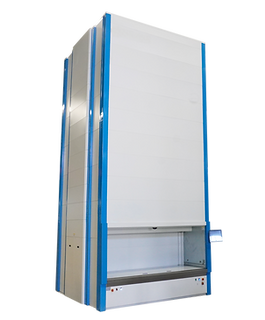

VERTICAL LIFT MODULE (VLM)​
-
Efficient and accurate storage and management solution in limited space
-
Suitable for storing small commodities such as electronics, medical supplies, medicines, tools and parts, etc
-
Widely used in retail, e-commerce, medical, manufacturing
-
Strict safety and temperature control
-
Tray width = from 1 to 4 m
-
Module height = Up to 20m
-
Tray load capacity = Up to 1,000 kg
-
Travel speed (full load) = 0.8 m/s
-
Retrieval speed (full load) = 0.3 m/s
